Mechanical BIM / Infrastructure Mechanical / Fire Protection

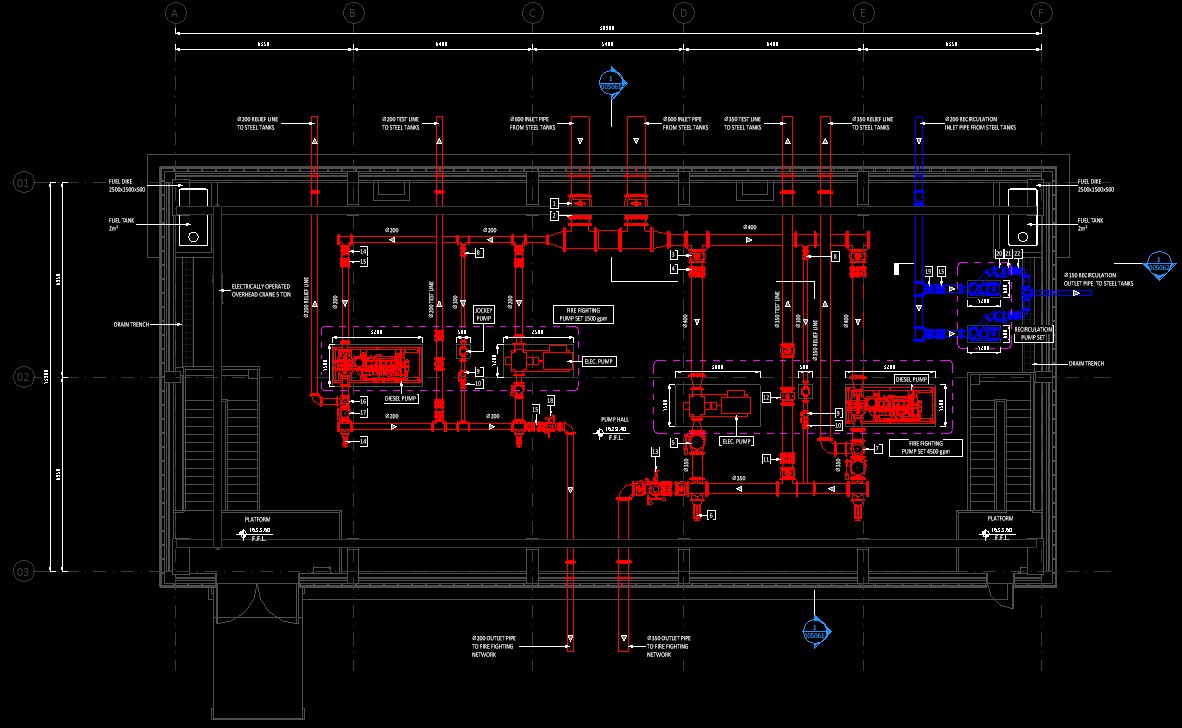

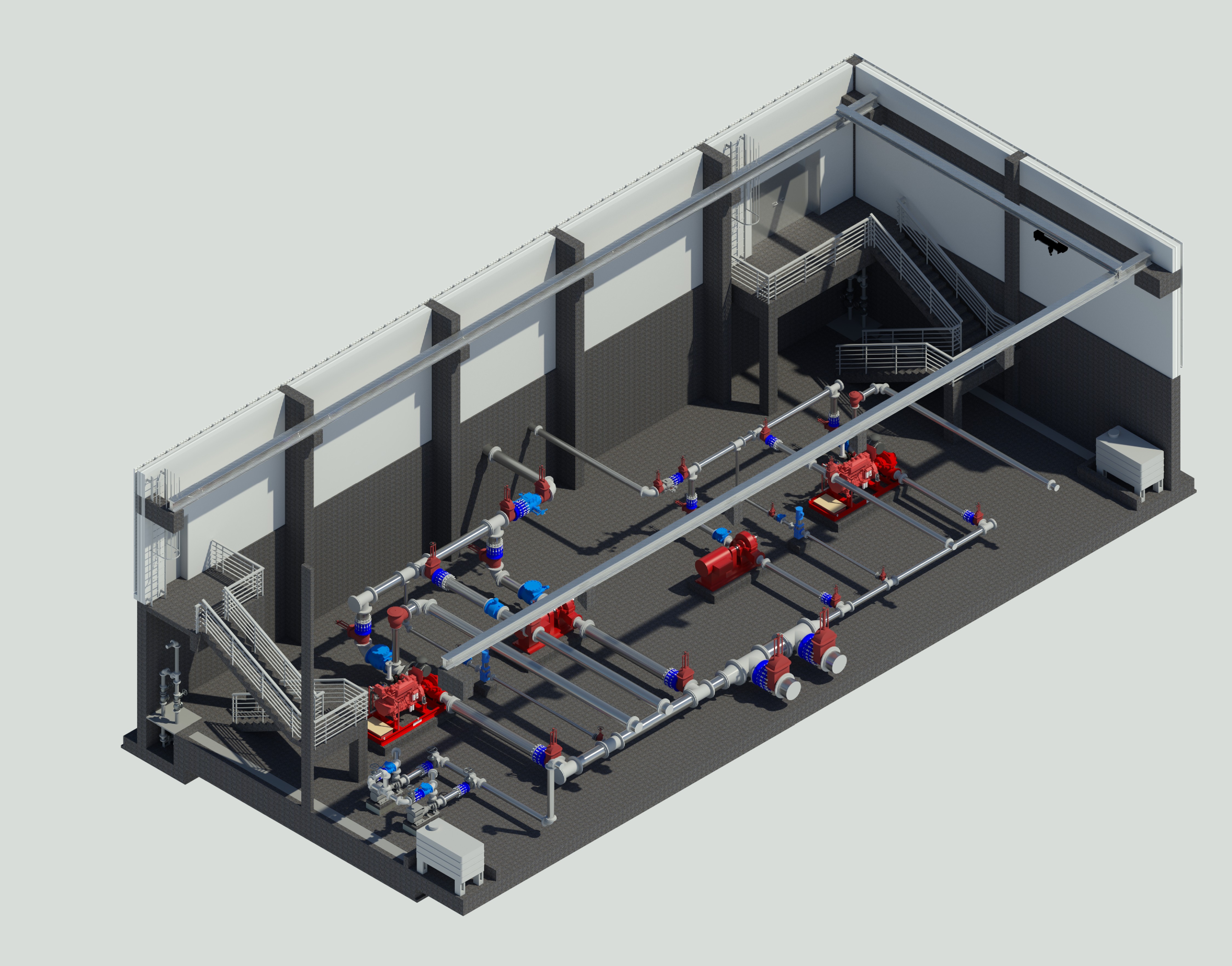

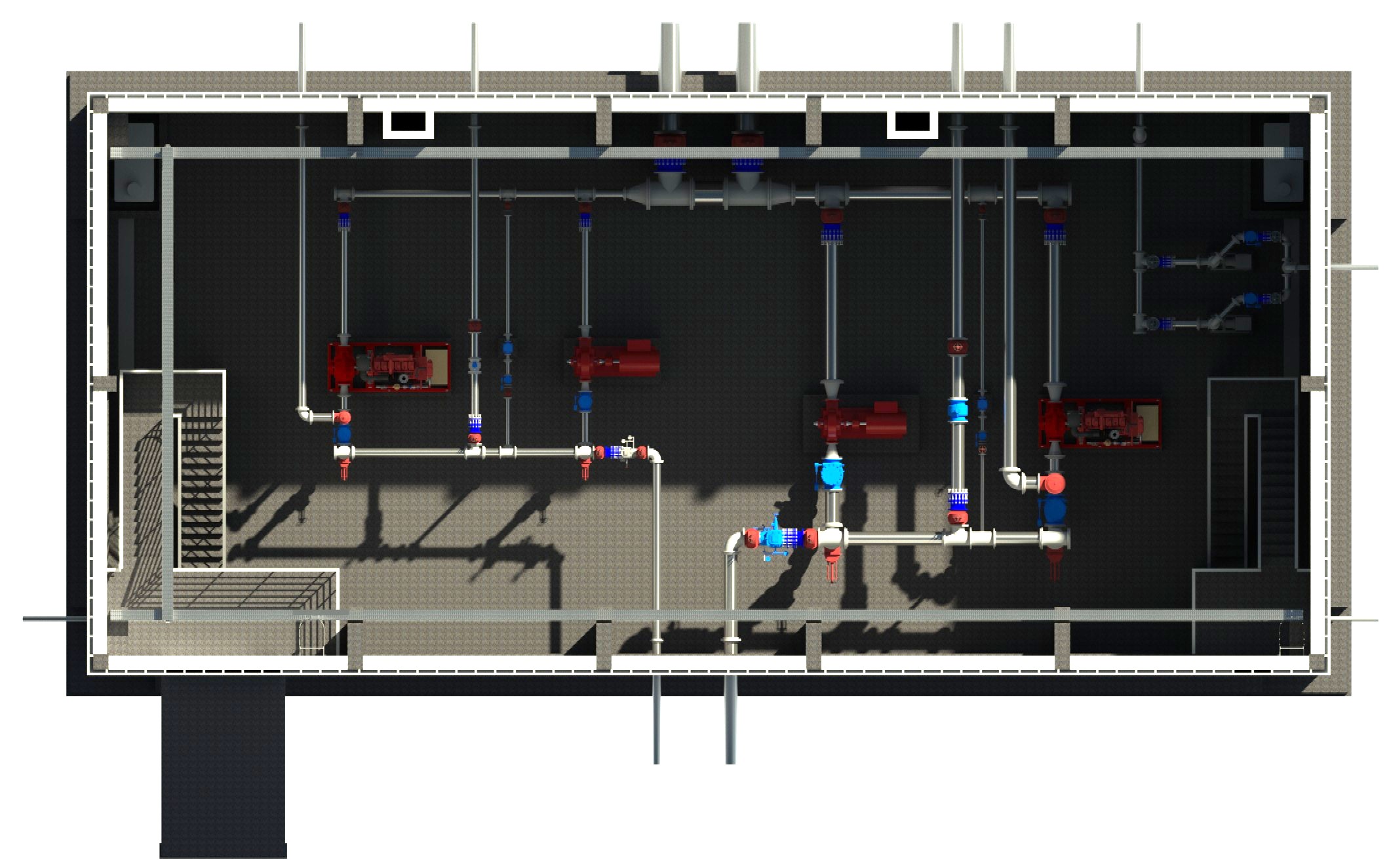

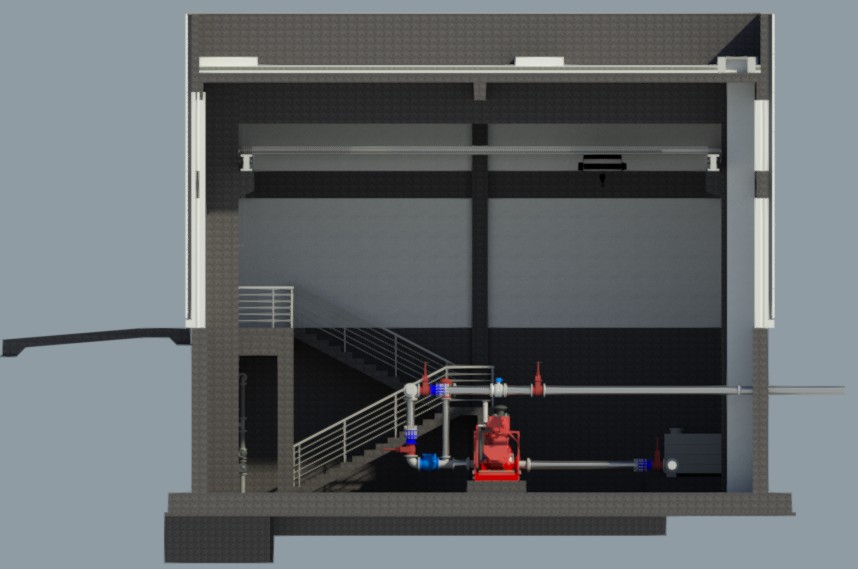

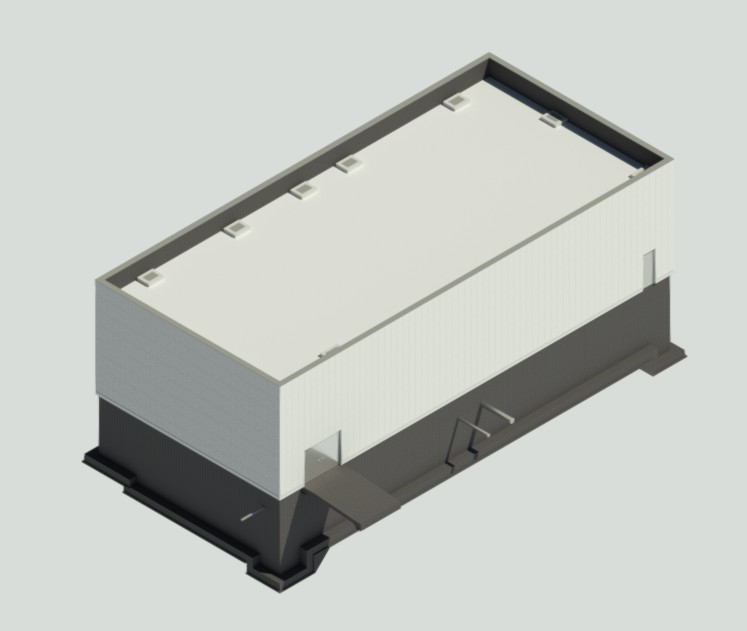

Mechanical design, BIM modeling, and multidisciplinary coordination for a fire fighting pumping station, including fire pump sets, jockey pumps, recirculation pumps, drainage pumps, and overhead crane systems.
Project TypeFire Protection / Fire Fighting Infrastructure
DisciplineMechanical BIM / Infrastructure Mechanical / Fire Protection
RoleLead BIM Modeler / Mechanical BIM Coordinator
LocationConfidential
Project Scope
What was delivered
Mechanical Design / BIM Modeling & Coordination of Fire Fighting Pumping Station Systems
Key Design Data
Selected Technical Parameters
Fire Pump Set-1
2 (1 Electric Duty + 1 Diesel Standby) — 4500 GPM @ 100 m
Jockey Pump - Set 1
1 Vertical Inline — 90 GPM @ 110 m
Fire Pump Set-2
2 (1 Electric Duty + 1 Diesel Standby) — 1500 GPM @ 100 m
Jockey Pump - Set 2
1 Vertical Inline — 80 GPM @ 110 m
Recirculation Pumps
2 (1 Duty + 1 Standby) — 41 L/s @ 17 m
Drain Pumps
4 (2 Duty + 2 Standby) — 5 L/s @ 15 m

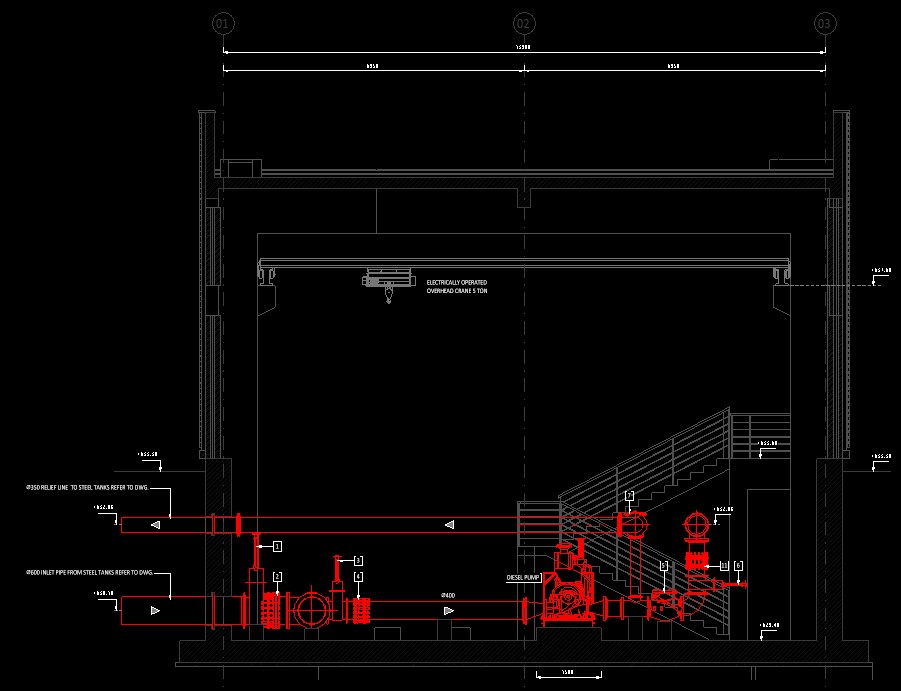

Overhead Crane
1 Electrically Operated — 5 Ton
Design & Calculations
Engineering Verification
Mechanical design development and engineering coordination of fire pump sets, jockey pumps, recirculation pumps, drainage pumps, and associated mechanical systems based on the defined flow and head requirements.
